FLUORESCENCE

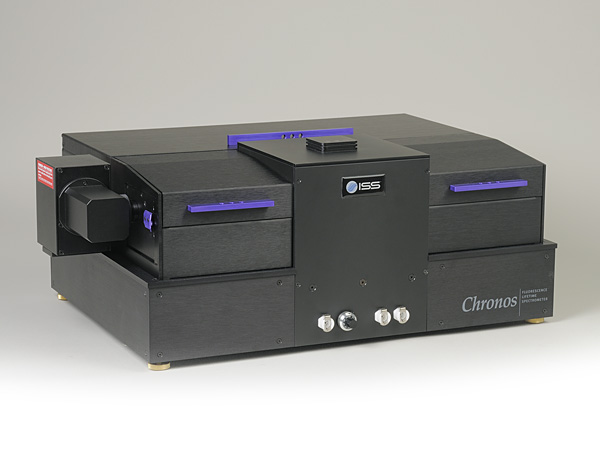

ChronosBHTime-domain fluorometer ChronosBH is a time-domain fluorometer with picosecond resolution. Its optical design and automatic instrument control are state-of-the-art for time -resolved fluorometers. Wavelength Range 160 - 850 nm (MCP), 185 - 850 (PMT) TCSPC Modules • Electrical Time Resolution down to 8 ps FWHM/5 ps rms • Minimum Time Channel Width 820 fs • Total useful count rate up to 4 MHz • Measurement times down to 1 ms | ChronosFDTime-resolved spectrofluorometer ChronosFD is a frequency-domain instrument based on laser diodes and light emitting diodes (LEDs). Lifetime Measurements Range 10-11 sec to 10-2 sec Life time technic • Electrical Time Resolution down to 8 ps FWHM/5 ps rms • Minimum Time Channel Width 820 fs • Total useful count rate up to 4 MHz • Measurement times down to 1 ms | K2STEADY-STATE & TIME-RESOLVED SPECTROFLUROMETER The K2 family of frequency-domain fluorometers provides researchers with a solid, well-proven instrumentation platform for the most demanding fluorescence and phosphorescence applications. Dynamic Range Linear up to 4 million counts/second Wavelength Accuracy ±0.2 nm Wavelength Reproducibility ±0.25 nm Slew Rate 160 nm/s (optional double grating) |
---|---|---|
PC1PHOTON COUNTING STEADY-DTATE SPECTROFLUOROMETER PC1 is a highly sensitive, compact, computer-controlled Photon Counting Spectrofluorimeter designed for applications in physical chemistry, biochemistry, physiology, neurochemistry, molecular biology, environmental analysis, and immunoassay research. Monochromators Single concave holographic grating Wavelength range: from 200 nm to 1200 nm (dependent on selected grating) Wavelength Accuracy ±0.2 nm Wavelength Reproducibility ±0.25 nm Slew Rate |
어플리케이션
High-Pressure Cell SystemThe ISS High Pressure Cell System (HPCell) can be interfaced directly to any ISS spectrofluorometer or utilized as a stand-alone unit with other fluorometers | IlluminatorThe Illuminator provides a convenient source of radiation from wavelengths of 230 nm to 850 nm | Laser Diodes & LEDsLaser and light emitting diodes (LEDs) are an exciting alternative to traditional lamps; they are bright, stable, and compact light sources |
---|---|---|
Light DetectorsLearn more about our Room Temperature PMT Housing, Cooled PMT Housing, and Microchannel Plate Detector. | Processing ElectronicsFrom Stepper Motor Controller to Photon Counting electronics, Modulators to Data Acquisition boards, we have the processing component for your application. | Phoenix (SLM Upgrade)Learn more about our upgrade package for the SLM-4800/48000 and SLM-8000/8100 spectrofluorometers, designed to modernize the instruments manufactured by SLM Instruments |
악세서리
Light ScourcesLearn more about our Laser & Light Emitting Diodes and Xenon Arc Lamps—the standard used in all of our spectrofluorometers | Sample CompartmentsWe offer a wide range of Sample Compartments, including one-to-four cuvette holders, an HPCell System and Total Internal Reflection Fluorescence (TIRF) Flow Cell | PolarizersLearn more about the quality of our UV Glan-Taylor and UV Glan-Thompson Prism Polarizers, and Beam Splitter. |
---|---|---|
Fiber OpticsLearn more about our Chemically Activated Fiber Tip and Fiber Optics, Complete with XY Control and Dichroic Mirror. | Microwell Plate ReaderLearn more about our microwell plate reader, capable of using 96- and 384-well plates | TitratorsWe offer a computer-controlled titrators for use with our fluorescence instrumentation product line |
